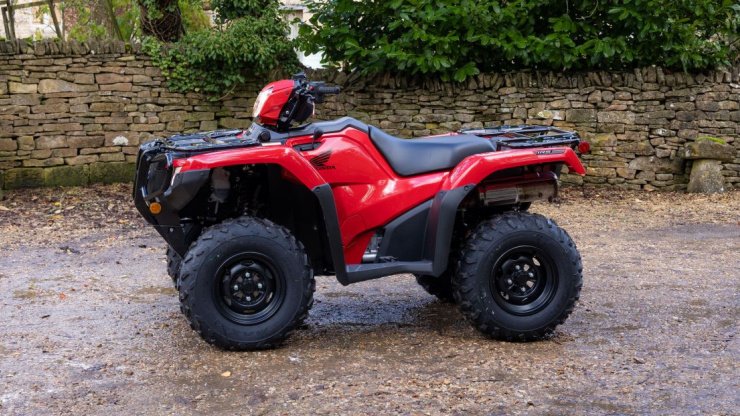

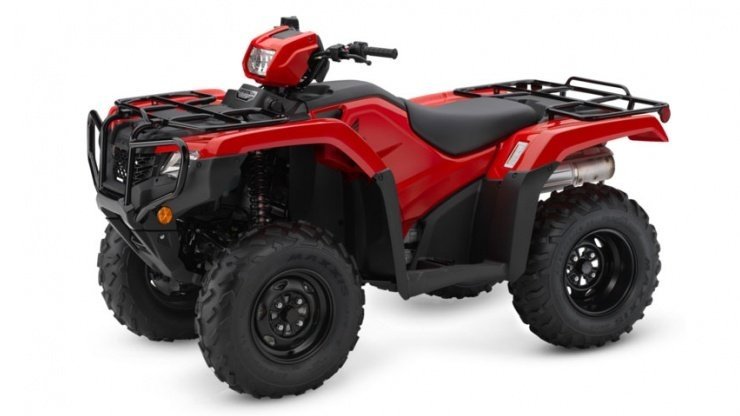

New TRX520FM6 Foreman IRS

£10,130 (excl. vat)

Manual Shift with Power Steering, plus Independent rear suspension.

The Foreman is a heavy-hitting ATV built for hard work and hauling big loads – day in, day out.

Engine	520cc liquid cooled, wet sump, longitudinally mounted OHV 4-stroke single cylinder
Carburation	PGM-Fi 36mm throttle-body fuel injection system
Ignition	Full-transistorized with electronic advance
Starter	Electric with auxiliary recoil
Transmission	Five forward gears with reverse, auto clutch with manual shift.
Drive	Direct front and rear driveshafts with TraxLok™ 2/4wd selection and pushbutton front differential lock.
Power Steering	Yes
Front Suspension	Independent double-wishbone 185mm travel, preload adjustable

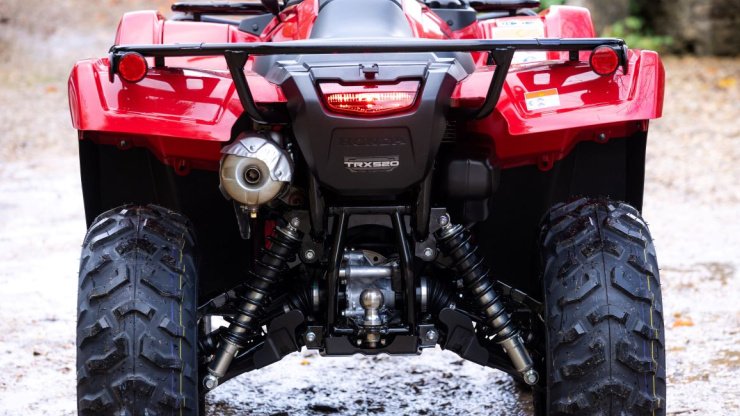

Rear Suspension	Independent double-wishbone 185mm travel, preload adjustable
Front Brakes	190mm dual hydraulic discs
Rear Brake	170mm single hydraulic/mechanical disc
Front tyres	25 x 8-12 radial
Rear tyres	25 x 10-12 radial
Fuel Capacity (l)	14.7L, incl. 4.9L reserve
Bore x Stroke (mm)	92.0 × 71.5 mm
Dimensions - Length (mm)	2147
Dimensions - Width (mm)	1205
Dimensions - Height (mm)	1237
Wheelbase (mm)	1292
Seat Height (mm)	911
Ground Clearance (mm)	241
Towing Capacity (kg)	600
Front Rack Capacity (kg)	45
Rear Rack Capacity (kg)
