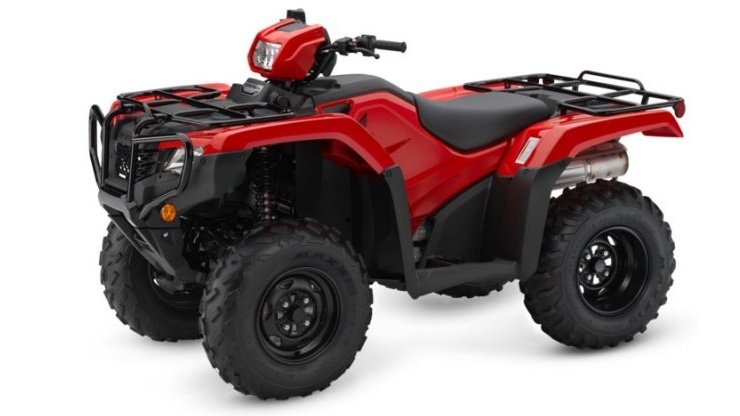

New TRX520FA6 Foreman DCT IRS PS

£10,530 (excl. vat)

Summary
Specification

Go-anywhere, do-anything tool, with faster, smoother gear changes plus independent double-wishbone rear suspension, power steering and a towing capacity of 600kg.

Engine	520cc liquid cooled, wet sump, longitudinally mounted OHV 4-stroke single cylinder
Carburation	PGM-Fi 36mm throttle-body fuel injection system
Ignition	Full-transistorized with electronic advance
Starter	Electric with auxiliary recoil
Transmission	Automatic transmission (Dual Clutch) with five forward gears with reverse, auto-shifting or electric shift
Drive	Direct front and rear driveshafts with TraxLok™ 2/4wd selection and pushbutton front differential lock.
Power Steering	Yes

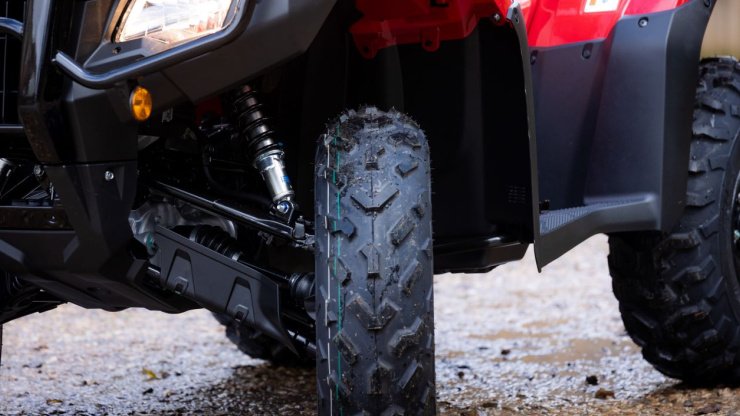

Front Suspension	Independent double-wishbone 185mm travel, preload adjustable

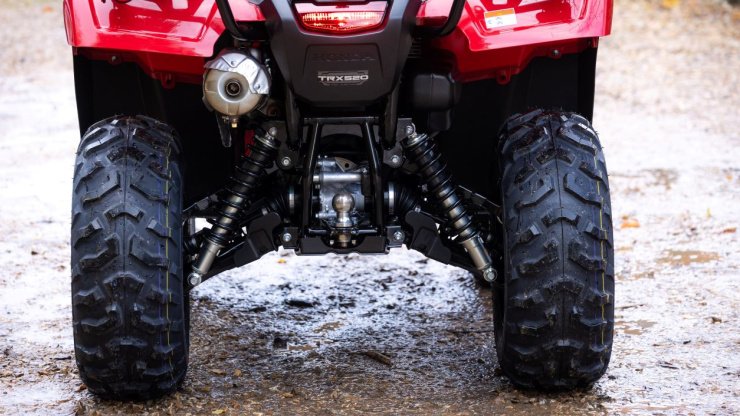

Rear Suspension	Independent double-wishbone 185mm travel, preload adjustable
Front Brakes	190mm dual hydraulic discs
Rear Brake	170mm single hydraulic/mechanical disc
Front tyres	25 x 8-12 radial
Rear tyres	25 x 10-12 radial
Fuel Capacity (l)	14.7L, incl. 4.9L reserve
Bore x Stroke (mm)	92.0 × 71.5 mm
Dimensions - Length (mm)	2147
Dimensions - Width (mm)	1205
Dimensions - Height (mm)	1237
Wheelbase (mm)	1292
Seat Height (mm)	911
Ground Clearance (mm)	241
Towing Capacity (kg)	600
Front Rack Capacity (kg)	45
Rear Rack Capacity (kg)	85

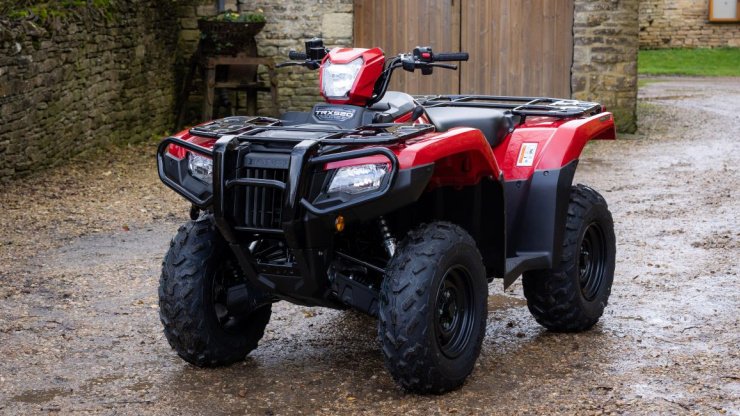

New TRX520FA6 Foreman DCT IRS PS

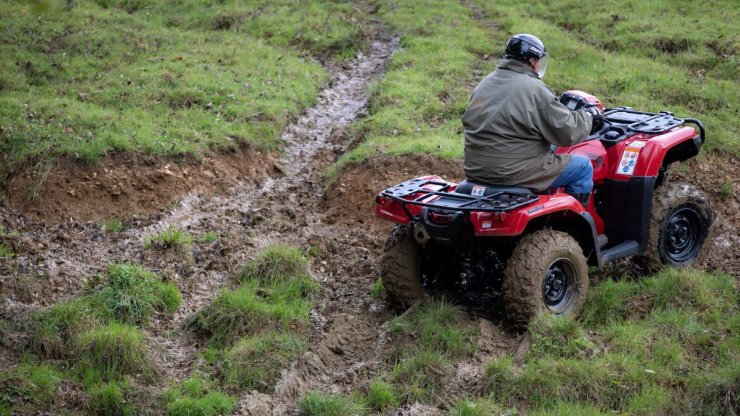

The Foreman is a heavy-hitting ATV built for hard work and hauling big loads – day in, day out.
